LTX 2000 Series Printers
Features:
  • Compact Size
  • Automatic Ticket Loading
  • High Print Speed - 3.5 inches/second
  • Ticket Jam Detector
  • WYSIWYG Windows™ Driver
LTx 2000 Series

LTx 2000 series is a family derivative of Practical Automation's successful, high performance Model ETX™ series printers. smaller and lower priced, LTx series is an attractive, practical choice for low to moderate ticket pricing applications...university box office, sporting events, cinemas, local theaters, social events, churches, etc. It is offered in desktop and vertical mount versions, with ticket widths of 2 or 3.25 inches. ticket stock is self-loading and printed tickets are dispensed using a tearbar.


All The Performance You Need At A Price You Can Afford!

In performance the LTx 2000 series rates right up there with its bigger brother. It utilizes the same simple programming language compatible with application software written for popular industry standards.

You can expand and rotate printed characters as you wish. There is a choice of twelve resident fonts and seven resident bar codes. PCX file-supported graphics and line and box drawing can be used to enhance the appearance of the printed ticket. The standard interface is Centronics™ compatible parallel. Series RS232C with low paper input is available as an optional interface adapter.

Innovated, focused design makes the LTx 2000 series very cost effective-it comes with a price tag significantly lower than competitive product offerings, thereby setting an industry standard for price/performance.



Small, But Tough!

Meticulous attention to reliability and maintainability has gone into the design of the LTx 2000 series. Rugged construction enables it to stand up to rough, real-world conditions. Advanced technology and modular construction assure long, trouble-free operation.

Field maintenance and system setup have been simplified through built-in diagnostics and panel switch entry of setup data.

User Friendly Programming

Scaleable internal fonts and bar codes are selected by sending the corresponding command codes to the printer. The LTx 2000 is also supported by an available Windows™ compatible driver. This unique driver is designed to take advantage of the applications, flexibility, and easy programming features of Windows, including the printing of True Type fonts and graphics.

Convenient, Practical Packaging

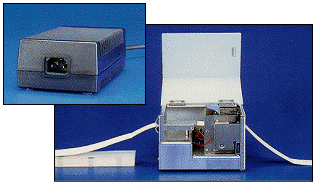

LTx 2000 series consists of two modules: a printer module and a power supply module. All operating power for the printer module is supplied by the universal input, regulated, switching power supply module through a four-foot power cable. With its smaller footprint, the printer module is more easily integrated into ticket printing systems. The power supply module can be mounted out of sight, even remotely located.

LTX 2000 Series Printers Specifications
Printing Method: Direct thermal
Printhead:
     Dot Density 203.2 DPI (8 dots/mm)
     Dot Size 0.005 in. (0.125 mm)
Ticket Width:
     LTx-2002 or
     pLTx-2002		 2.0" ħ0.016 (50.8 mm + 0.41)
     LTx-2003 or
     pLTx-2003		 3.25" ħ0.016 (82.6 mm +0.41)
Print Width:
     LTx-2002 or
     pLTx-2002		 2.0" (50.8 mm) max., 1.8" (45.7 mm) typ.
     LTx-2003 or
     pLTx-2003		 3.15" (80 mm) max., 3.05' (77.5 mm) typ.
Ticket Length: 2.0" min; 10.1' max.
Print Length: 10.1" max.
Print Speed: 3.5 in/sec (88.9 mm/sec) max.
Paper Feed: Friction
Detectors: Paper/registration (photo optical), Printhead temperature (thermistor), Printhead up detect (mechanical switch), Paper jam detect (mechanical switch)
Indicators: Power/Paper, Attention/Error, Ready
User Switches: Power on/Off,Select(F0) Test(F1) Line Feed(F2), Ticket Feed (F3)
Power Requirements: Provided by model PS55-14 external power supply.
Paper Separation: Tearbar
Resident Fonts: 5 x 7, 8 x 16,17 x 31 (OCRA), 17 x 31 (OCRB), 5 x 9 (OCRA), 30 x 52 (OCRB), 18 x 30 (Courier), 13 x 20 (OCRB), 25 x 41 (Bold Prestige), 25 x 49 (Script), 46 x 91 (Orator), 20 x 40 (Courier)
Resident Bar Codes: Code 39, Interleaved 2 of 5, EAN 13, EAN 8, UPC, USS-CODABAR, and Code 128, normal or expandable, with or without human readable interpretation line
Character Sets: 128 element standard ASCII, German character set, OCRA, OCRB, and British pound sign
Graphics: Dot addressable, graphic and box and line draw, PCX file support.
Programmable Features: Character size, character rotation, inverse printing
Image Data RAM: 1/2 meg. byte
Input Data Buffer: 22 kb circular
Interface:
     Parallel Centronics compatible parallel
     Serial* RS232C; 2400, 4800, or 9600 Baud
     Auxiliary
     Serial*		 Transparent mode operation
     Flow
     Control		 BUSY or XonXoff
     Parity Odd, even, or none
*With Optional Adaptor
System Setup Parameters: User-friendly switch panel entry of setup data into EEPROM memory
Environment:
     Temperature +5°C to +40°C operating
-5°C to +65°C storage
     Humidity 20 to 85% relative. non-condensing
Regulatory Compliance
     EMI FCC Class A compliance
    Safety
    Listings		 UL-1950, CAN/CSAC22.2 No. 950 IEC-950 (pending).
Printer DC Input Voltage: 24VDC
Printer DC Input Current: 8 amps peak (LTx 2002)
11.1 amps peak (LTx 2003)
2.3 amps average (long term)
PS-55-14 Power Supply
AC Power Input: 85 to 264 VAC, 47 to 65 Hz
PS-55-14 Power Supply
AC Input Current: 1.5A (rms) at 115 VAC
0.9A (rms) at 230 VAC
PS-55-14 Power Supply
Output Voltage: 24 VDC ħ 3%
PS-55-14 Power Supply
Output Power: 55 watts max. average
Dimensions:
     Desktop Model
     µLTx200x 8" long x 6.65" wide x 5.25" high
     Vertical Panel
     Mount
     pLTx200x		 7.87" long x 7.50 wide x 6.0' high
     Power Supply
     PS55-14 6.97" long x 3.74" wide x 2.35" high


Ordering Information

Product Base No. LTx 200 Includes LTx printer system with
external input power supply and 115V line cord.

Ordering Information

Example:
µLTX 2003P -10 = Desktop printer with 3.25" ticket width, parallel interface, US power supply, no download memory.


Seperate Componenets Ticket Stock
A15-10811-1: Universal Input Power Supply
(85 - 264 VAC) with 115 VAC line cord 		B15-90131:     2.0"W x 5.5"L, pkg 1000 / bundle, fanfold
B15-90136:     2.0"W x 4.0"L, pkg 1000 / bundle, fanfold
A15-10811-2:     Universal Input Power Supply
(85 - 264 VAC) without line cord 		B15-90132:     3.25"W x 5.5"L, pkg 1000 / bundle, fanfold
B15-90133:    3.25"W x 2.0"L, pkg 3000 / bundle, fanfold
B15-10699: Serial Interface Adapter with Low Paper Input Connector
Accessories
A09-71091: Serial Data Cable (DB-9P to DB-9S One to One Wiring)
A09-71018: Parallel Data Cable (DB-25P to DB-25P One to One Wiring)

Specifications subject to change without notice.
